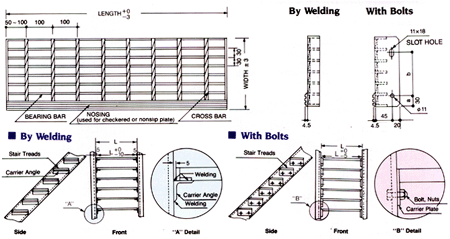

Recommended Dimension

Load bearing bars at 30mm pitch

Width(mm)

215

245

275

305

Bolt Pitch(A)

120

150

180

210

Length(mm)

500, 600, 700, 800, 900, 950, 1050, 1200

Size of Bearing Bars(H)

125, 132, F25x5, F32x5, SF25x5, SF32x5
